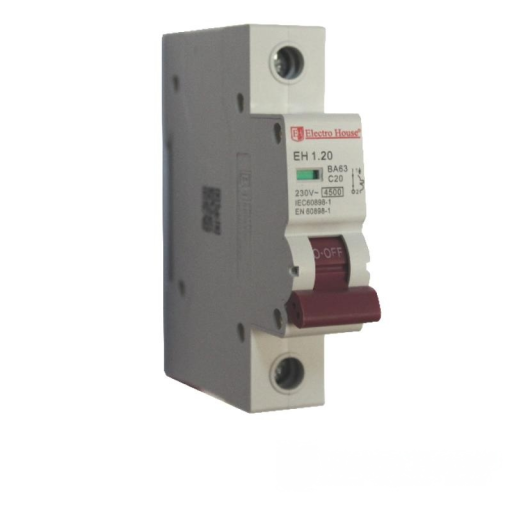

MCB 1Р 20A 4.5kА, curve C

EH-1.20
Technical Specifications
SKU EH-1.20
Type Circuit breakers
Amount in a package 12 pcs
Color white
Features Fireproof housing
Shutdown curve C
Supply voltage 230-400 V
Rated breaking capacity 4.5kА
Type of machine Modular
Current purity 50/60Hz
Protection (IP) IP20
Rated Current In 20A
Number of poles 1
Number of duty cycles 12 000
Description

MCB 1Р 20A 4.5kА, curve C EH-1.20 from Electro House is a reliable component for protecting electrical networks from short circuits and overloads. This modular device with a rated current of 20A and a breaking capacity of up to 4.5kА ensures the safety of the power supply in all conditions. The circuit breaker has a C-type tripping curve, making it ideal for use in networks with moderate inrush currents, such as lighting circuits or household appliances. The device works at the frequency 50/60Hz and supports the voltage 230-400 V.

Thanks to its flame-resistant housing and degree of protection IP20 , this mini circuit breaker is suitable for both industrial and residential applications. It allows you to manually disconnect the mains for maintenance or repair work, and will automatically disconnect the power in case of emergency situations. For convenience and reliability of installation, we offer modular boxes that allow you to quickly install the switch.

Choose MCB 1Р 20A 4.5kА, curve C from ElectroHouse for safe and effective electrical protection of your network!

Автоматический выключатель 1P 20A EH-1.20

MCB (Mini circuit breakers)

SKU Name Picture
EH-1.1 MCB 1Р 1A 4.5kА, curve C EH-1.1
EH-1.3 MCB 1Р 3A 4.5kА, curve C EH-1.3
EH-1.6 MCB 1Р 6A 4.5kА, curve C EH-1.6
EH-1.10 MCB 1Р 10A 4.5kА, curve C EH-1.10
EH-1.16 MCB 1Р 16A 4.5kА, curve C EH-1.16
EH-1.25 MCB 1Р 25A 4.5kА, curve C EH-1.25
EH-1.32 MCB 1 Р 32 A 4,5 kА, curve C EH-1.32
EH-1.40 MCB 1 Р 40 A 4,5 kА, curve C EH-1.40
EH-1.50 MCB 1 Р 50 A 4,5 kА, curve C EH-1.50
EH-1.63 MCB 1 Р 63 A 4,5 kА, curve C EH-1.63
EH-2.6 MCB 2 Р 6 A 4,5 kА, curve C EH-2.6
EH-2.10 MCB 2Р 10A 4.5kА, curve C EH-2.10
EH-2.20 MCB 2 Р 20 A 4,5 kА, curve C EH-2.20
EH-2.25 MCB 2 Р 25 A 6 kА, curve C EH-2.25
EH-2.32 MCB 2 Р 32 A 4,5 kА, curve C EH-2.32
EH-2.40 MCB 2 Р 40 A 4,5 kА, curve C EH-2.40
EH-2.50 MCB 2 Р 50 A 4,5 kА, curve C EH-2.50
EH-2.63 MCB 2 Р 63 A 4,5 kА, curve C EH-2.63
EH-3.6 MCB 3 Р 6 A 4,5 kА, curve C EH-3.6
EH-3.10 MCB 3 Р 10 A 4,5 kА, curve C EH-3.10
EH-3.16 MCB 3 Р 16A 4,5 kА, curve C EH-3.16
EH-3.20 MCB 3 Р 20 A 4,5 kА, curve C EH-3.20
EH-3.25 MCB 3 Р 25 A 4,5 kА, curve C EH-3.25
EH-3.32 MCB 3 Р 32 A 4,5 kА, curve C EH-3.32
EH-3.40 MCB 3 Р 40 A 4,5 kА, curve C EH-3.40
EH-3.50 MCB 3 Р 50 A 4,5 kА, curve C EH-3.50
EH-3.63 MCB 3 Р 63 A 4,5 kА, curve C EH-3.63
EH-3.80S MCB power 3 Р 80 A 10kA, curve C EH-3.80S
EH-3.100S MCB power 3 Р 100 A 10kA, curve C EH-3.100S
EH-3.125S MCB power 3 Р 125 A 10kA, curve C EH-3.125S
EH-2.16 MCB 2Р 16A 4.5kА, curve C EH-2.16
