MCB 1Р 10A 4.5kА, curve C

EH-1.10
Technical Specifications
SKU EH-1.10
Type Circuit breakers
Number of poles 1
Rated Current In 10A
Type of machine Modular
Shutdown curve C
Current purity 50/60Hz
Rated breaking capacity 4.5kА
Features Fireproof housing
Protection (IP) IP20
Supply voltage 230-400 V
Amount in a package 12 pcs
Color white
Number of duty cycles 12 000
Description

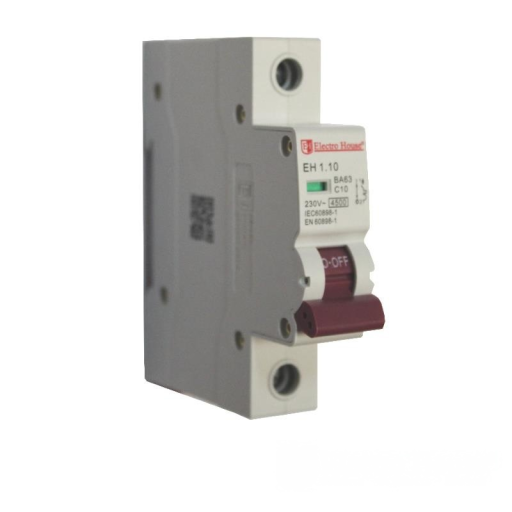

MCB 1Р 10A 4.5kА, curve C EH-1.10 from Electro House is a reliable component for protecting electrical networks from short circuits and overloads. This modular device with a rated current of 10A and a breaking capacity of up to 4.5kА ensures the safety of the power supply in all conditions. The circuit breaker has a C-type tripping curve, making it ideal for use in networks with moderate inrush currents, such as lighting circuits or household appliances. The device works at the frequency 50/60Hz and supports the voltage 230-400 V.

Thanks to its flame-resistant housing and degree of protection IP20 , this mini circuit breaker is suitable for both industrial and residential applications. It allows you to manually disconnect the mains for maintenance or repair work, and will automatically disconnect the power in case of emergency situations. For convenience and reliability of installation, we offer modular boxes that allow you to quickly install the switch.

Choose MCB 1Р 10A 4.5kА, curve C from ElectroHouse for safe and effective electrical protection of your network!

Автоматический выключатель 1P 10A EH-1.10

MCB (Mini circuit breakers)

SKU Name Picture
EH-1.1 MCB 1Р 1A 4.5kА, curve C EH-1.1
EH-1.3 MCB 1Р 3A 4.5kА, curve C EH-1.3
EH-1.6 MCB 1Р 6A 4.5kА, curve C EH-1.6
EH-1.16 MCB 1Р 16A 4.5kА, curve C EH-1.16
EH-1.20 MCB 1Р 20A 4.5kА, curve C EH-1.20
EH-1.25 MCB 1Р 25A 4.5kА, curve C EH-1.25
EH-1.32 MCB 1 Р 32 A 4,5 kА, curve C EH-1.32
EH-1.40 MCB 1 Р 40 A 4,5 kА, curve C EH-1.40
EH-1.50 MCB 1 Р 50 A 4,5 kА, curve C EH-1.50
EH-1.63 MCB 1 Р 63 A 4,5 kА, curve C EH-1.63
EH-2.6 MCB 2 Р 6 A 4,5 kА, curve C EH-2.6
EH-2.10 MCB 2Р 10A 4.5kА, curve C EH-2.10
EH-2.20 MCB 2 Р 20 A 4,5 kА, curve C EH-2.20
EH-2.25 MCB 2 Р 25 A 6 kА, curve C EH-2.25
EH-2.32 MCB 2 Р 32 A 4,5 kА, curve C EH-2.32
EH-2.40 MCB 2 Р 40 A 4,5 kА, curve C EH-2.40
EH-2.50 MCB 2 Р 50 A 4,5 kА, curve C EH-2.50
EH-2.63 MCB 2 Р 63 A 4,5 kА, curve C EH-2.63
EH-3.6 MCB 3 Р 6 A 4,5 kА, curve C EH-3.6
EH-3.10 MCB 3 Р 10 A 4,5 kА, curve C EH-3.10
EH-3.16 MCB 3 Р 16A 4,5 kА, curve C EH-3.16
EH-3.20 MCB 3 Р 20 A 4,5 kА, curve C EH-3.20
EH-3.25 MCB 3 Р 25 A 4,5 kА, curve C EH-3.25
EH-3.32 MCB 3 Р 32 A 4,5 kА, curve C EH-3.32
EH-3.40 MCB 3 Р 40 A 4,5 kА, curve C EH-3.40
EH-3.50 MCB 3 Р 50 A 4,5 kА, curve C EH-3.50
EH-3.63 MCB 3 Р 63 A 4,5 kА, curve C EH-3.63
EH-3.80S MCB power 3 Р 80 A 10kA, curve C EH-3.80S
EH-3.100S MCB power 3 Р 100 A 10kA, curve C EH-3.100S
EH-3.125S MCB power 3 Р 125 A 10kA, curve C EH-3.125S
EH-2.16 MCB 2Р 16A 4.5kА, curve C EH-2.16
