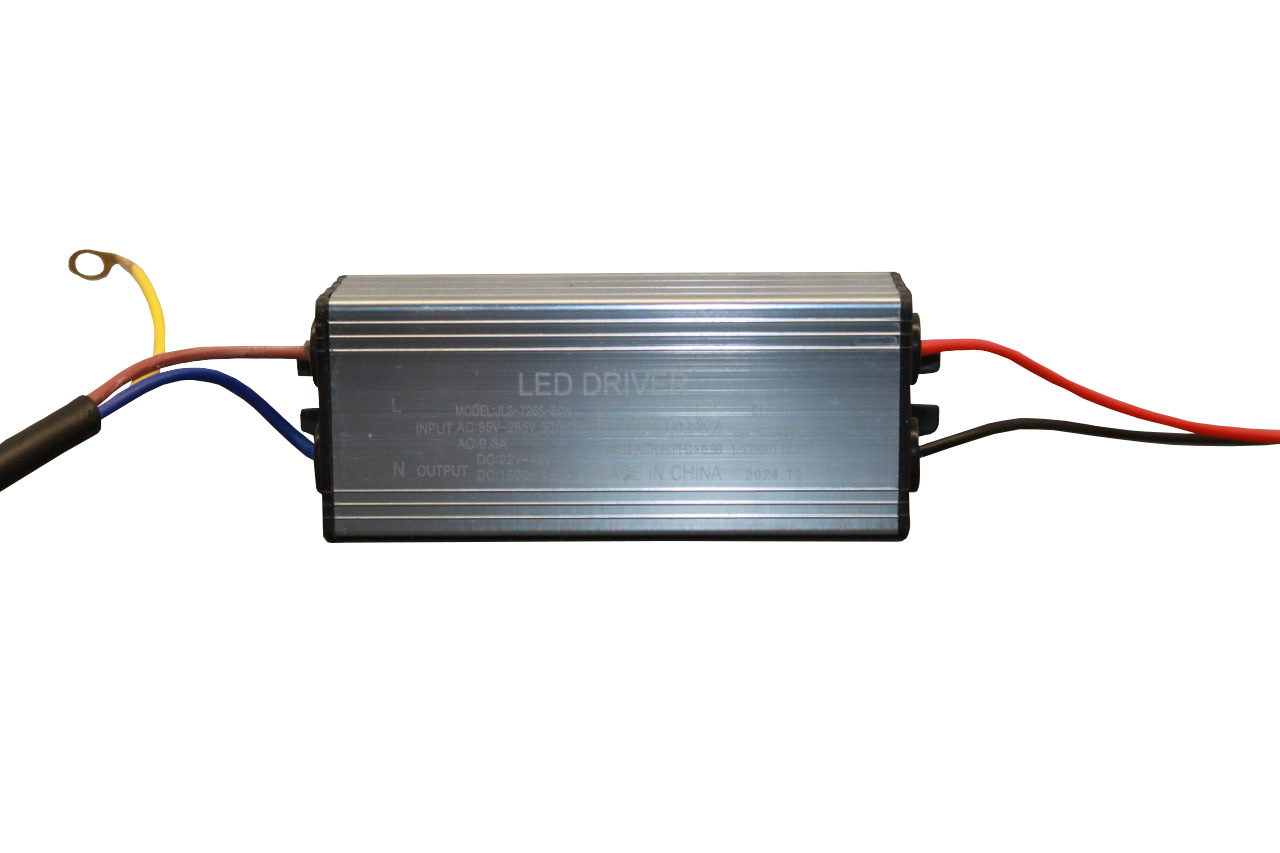

LED Driver for street ligh 50W IN:85-265 V, OUT:25-36 V 1500 mA IP65
Technical Specifications
| SKU | EH-DRV-50 |
|---|---|
| Power | 50 W |
| Component type | LED driver |
| Output current | 1500 mA |
| Brand Registration Country | Ukraine |
| Manufacturer | Electro House |
| Weight | 0,180 kg |
| Height | 2,7 cm |
| Width | 3,5 cm |
| Length | 9 cm |
| Current purity | 50/60Hz |
| Protection (IP) | IP65 |
| Temperature Range | TC:75°C TA:50°C(MAX) |
| Output voltage | 25-36 V |
| Input voltage | 85-265 V |
| Power factor |
Description
The LED Driver for street ligh 50W IN:85-265 V, OUT:25-36 V 1500 mA IP65 from Electro House is designed to power various LED devices from the AC mains. It can be connected to LED panels, various LED lighting devices, LED strips and other devices that require a fixed current supply. The EH-DRV-50 LED driver stabilizes the current flowing through the LED circuit, which allows the LED device to work for the time guaranteed by the manufacturer. In addition to the high stability of the output current, this device has short circuit and overload protection. Output short circuit protection allows you to protect the connected device even if the LED driver fails. It also differs in compactness and light weight. It can be used with a suitable device, which did not include a power supply, or as a replacement for a failed similar LED driver.
Accessories for fixtures
| SKU | Name | Picture |
|---|---|---|
| EH-LENS-30 | Lens for street lamps 30 W |
|
| EH-LENS-50 | Lens for street lamps 50 W |
|
| EH-PU-R | Mounting for universal LED panel |
|
| EH-FFP-X595 | Frame for LED panel 595х595mm |
|
| EH-DRV-3W6 | LED Driver for LED panel 3-6 W Input: AC 170-265 V Output:DC9-24V 300mA |
|
| EH-DRV-818 | LED Driver for LED panel 8-18W Input: AC 170-265 V Output:DC 24-72V |
|
| EH-DRV-1824 | LED Driver for LED panel 18-24W Input: AC 170-265 V Output:DC 54-96 V |
|
| EH-DRV-36 | LED Driver for LED panel 36 W |
|
| EH-COB-50 | LED matrix COB 50 W 6500К |
|
| EH-LMP-1291 | Ceramic lamp holder E27 |
|
| EH-LMP-1292 | Ceramic lamp holder E27 with reel |
|
| EH-LMP-1293 | Ceramic lamp holder E14 |
|
| EH-G13-01 | Plastic lamp holder G13 with mount |
|
| EH-G13-02 | Plastic lamp holder G13 with metal strap |
|
| EH-LMP-1294 | Lamp holder GU5.3 White Ceramics |
|
| EH-BSL-11W | Ceiling clamp white |
|
| EH-BSL-11G | Ceiling clamp Satin |
|
| EH-BSL-11B | Ceiling clamp Black |
|
| EH-AC-4027 | Socket - adapter E40-E27 |
|
| EH-DRV-30 | LED Driver for street light 30 W IN:85-265 V, OUT:25-36 V 900 mA IP65 |
|
| EH-COB-30 | LED matrix COB 30 W 6500К |
|
