LED Driver for LED panel 18-24W Input: AC 170-265 V Output:DC 54-96 V
Technical Specifications
| SKU | EH-DRV-1824 |
|---|---|
| Power | 24 W |
| Input voltage | 170-265 V |
| Output voltage | 54-96 V |
| Temperature Range | TC:75°C TA:50°C(MAX) |
| Protection (IP) | IP20 |
| Current purity | 50/60Hz |
| Length | 6,2 cm |
| Width | 3 cm |
| Height | 2 cm |
| Weight | 21 g |
| Manufacturer | Electro House |
| Brand Registration Country | Ukraine |
| Output current | 300мA±5% |
| Component type | LED driver |
Description

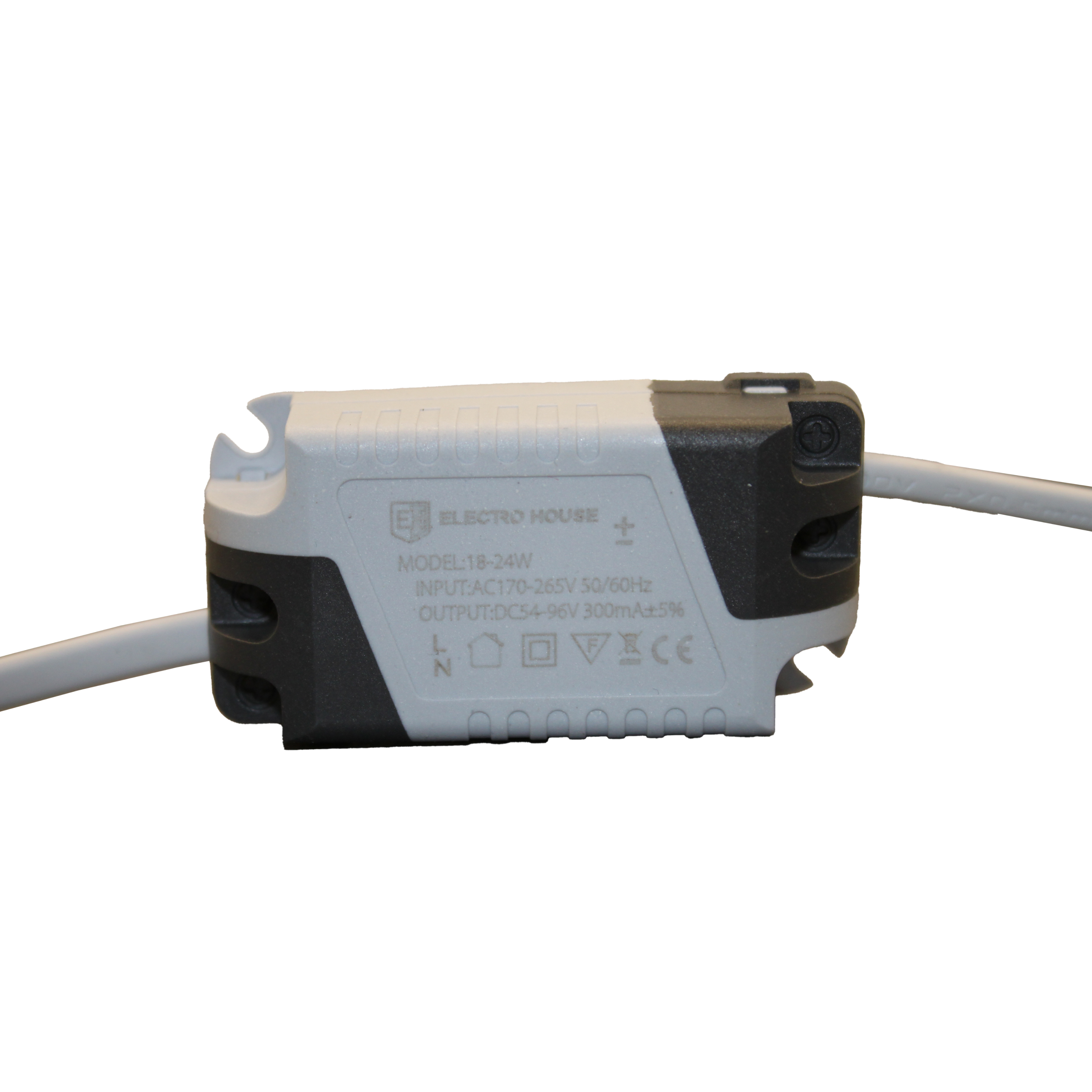

The LED Driver for LED panel 18-24W Input: AC 170-265 V Output:DC 54-96 V from Electro House is designed to power various LED devices from the AC network. It can be connected to LED panels, various LED lighting fixtures, LED tape and other devices that require a fixed current supply. The EH-DRV-1824 LED driver stabilizes the current flowing through the LED circuit, allowing the LED device to run the manufacturer's guaranteed time. In addition to high output current stability, this device has short circuit and overload protection. It is also compact and light in weight. It can be used with a suitable device that did not come with a power supply, or in replacement of a failed LED driver.
Accessories for fixtures
| SKU | Name | Picture |
|---|---|---|
| EH-LENS-30 | Lens for street lamps 30 W |
|
| EH-LENS-50 | Lens for street lamps 50 W |
|
| EH-PU-R | Mounting for universal LED panel |
|
| EH-FFP-X595 | Frame for LED panel 595х595mm |
|
| EH-DRV-50 | LED Driver for street ligh 50W IN:85-265 V, OUT:25-36 V 1500 mA IP65 |
|
| EH-DRV-3W6 | LED Driver for LED panel 3-6 W Input: AC 170-265 V Output:DC9-24V 300mA |
|
| EH-DRV-818 | LED Driver for LED panel 8-18W Input: AC 170-265 V Output:DC 24-72V |
|
| EH-DRV-36 | LED Driver for LED panel 36 W |
|
| EH-COB-50 | LED matrix COB 50 W 6500К |
|
| EH-LMP-1291 | Ceramic lamp holder E27 |
|
| EH-LMP-1292 | Ceramic lamp holder E27 with reel |
|
| EH-LMP-1293 | Ceramic lamp holder E14 |
|
| EH-G13-01 | Plastic lamp holder G13 with mount |
|
| EH-G13-02 | Plastic lamp holder G13 with metal strap |
|
| EH-LMP-1294 | Lamp holder GU5.3 White Ceramics |
|
| EH-BSL-11W | Ceiling clamp white |
|
| EH-BSL-11G | Ceiling clamp Satin |
|
| EH-BSL-11B | Ceiling clamp Black |
|
| EH-AC-4027 | Socket - adapter E40-E27 |
|
| EH-DRV-30 | LED Driver for street light 30 W IN:85-265 V, OUT:25-36 V 900 mA IP65 |
|
| EH-COB-30 | LED matrix COB 30 W 6500К |
|
