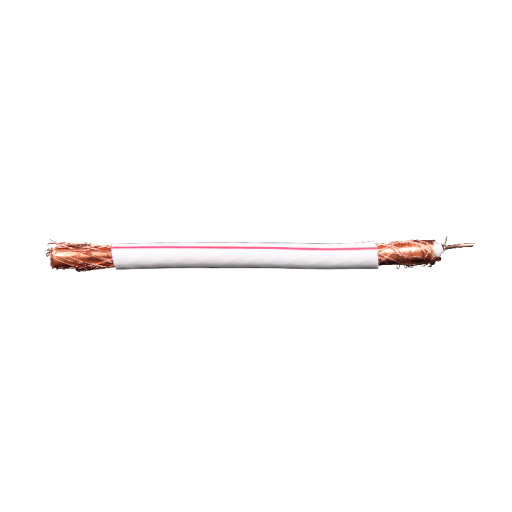

TV cable RG-6U 32% ССS 1,02 Al 32 copper wire PVC white

EH-11
Technical Specifications
SKU EH-11
Wave impedance 74 Ohm
Outer shell PVC
Estimated Cable Weight 3,44 kg / 100m
Foil Copper
Length 1 m
Packing Thermopack / 6 pcs in a box
Color White
Guarantee 14 days
Country of origin China
Brand Registration Country Ukraine
Outer conductor density 32%
Dielectric material PE physical foaming
Inner diameter 1,02
Type Coaxial
View Cables
Capacity 47,03 pF/m
Propagation speed 86,7 %
Operating voltage at 50 Hz eff. 3 kV
Test voltage 2 kV
Approx. value of linear attenuation, dB / 100m at 200 MHz / 400 MHz 4,33
Shielding braid 32 copper conductors
Conductor Material Copper

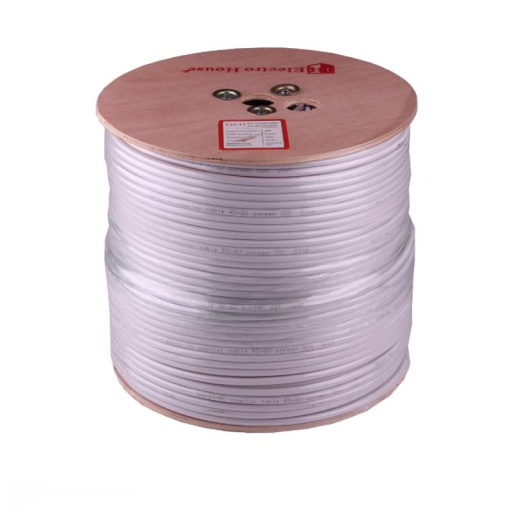

Additional features Length of cable bay - 305 m
Description

The coaxial cable RG-6U EH-11 white works for connecting transmitting or receiving signal systems, these include television, video equipment, etc. According to its structure, it is the main, central conductor, two cords that are on the same axis and the screen imposed on the core, which acts as a quality receiving or sending signal information. The sheath is PVC, which protects the cable from external adverse effects, disregarding the chosen installation location, whether inside the building or outside. The advantages of this model are low own weight, favorable cost and high quality when sending a signal that is protected from all kinds of interference.
