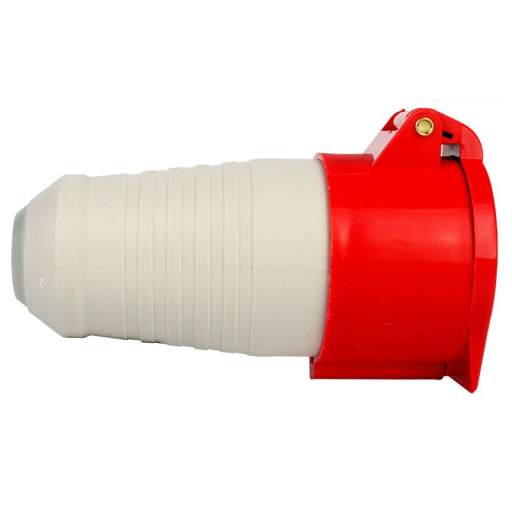

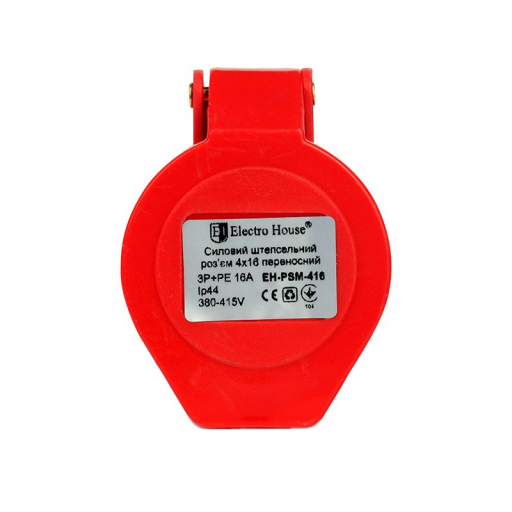

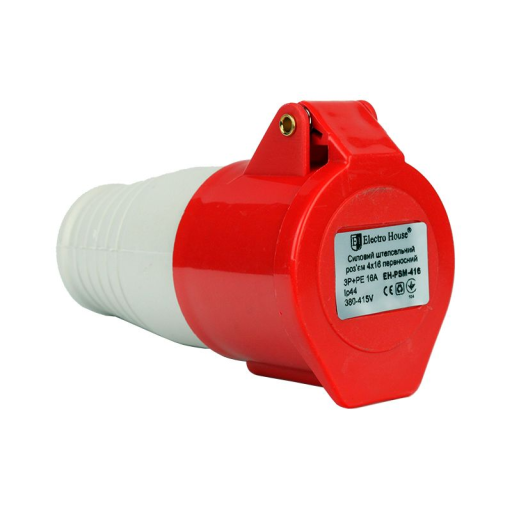

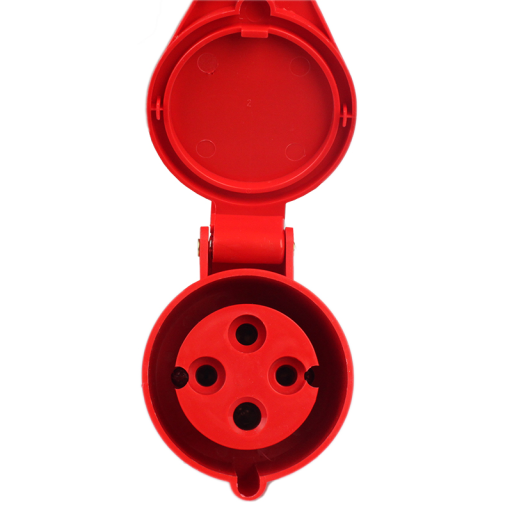

Portable power plug connector 4x16 3P+PE, 16А, 380-415 V, IP44
Technical Specifications
SKU | EH-PSM-416 |
---|---|
Pole Power Connectors | 3P+PE |
Rated current | 16А |
Working voltage | 380-415 V |
Protection (IP) | IP44 |
Ground Contact Position | 6 hours |
Temperature Range | -25...+50 |
Type | Socket |
Description
Portable power plug connector 4x16 3P+PE, 16А, 380-415 V, IP44 EH-PSM-416 from Electro House provides reliable connection of powerful electrical equipment to sources of alternating current with a voltage of 380-415 V and a frequency of 50 Hz. With a nominal current of 16А, this connector is ideal for powering mobile and stationary electrical devices in industrial and agricultural facilities, construction sites, as well as in airports and train stations. Thanks to protection class IP44 , it is resistant to dust and moisture, which makes it convenient to use in various conditions.
The body of the connector is made of high-strength plastic, which ensures a long service life even with intensive use. The simplicity and reliability of the design make it easy to connect and disconnect the connector, and special protective mechanisms prevent accidental pulling out of the cable or disconnection. Thanks to the use of heat-resistant and self-extinguishing materials, the connector is able to withstand a temperature range of -25...+50 °, ensuring the safety of operation in difficult conditions. The position of the ground contact is located at 6 hours, which ensures a reliable and safe connection.
Portable power plug connector 4x16 3P+PE, 16А, 380-415 V, IP44 by ElectroHouse is a reliable choice for your equipment!
