Support for floor Socket (Floor-mounted electrical fittings)

Support for floor Socket

Technical Specifications

SKU	EH-SUP-11x6
Material	Galvanized steel
Length	118 mm
Width	62 mm

Description

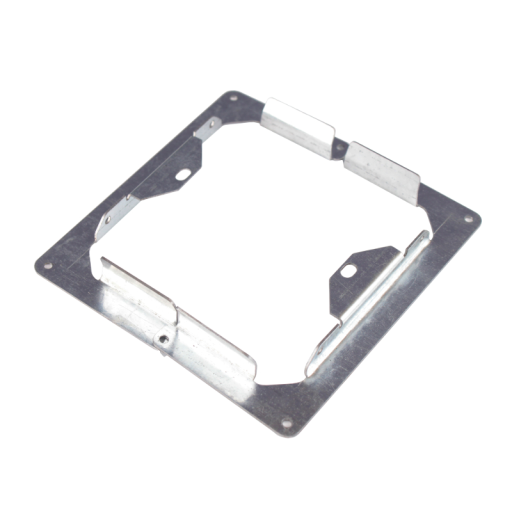

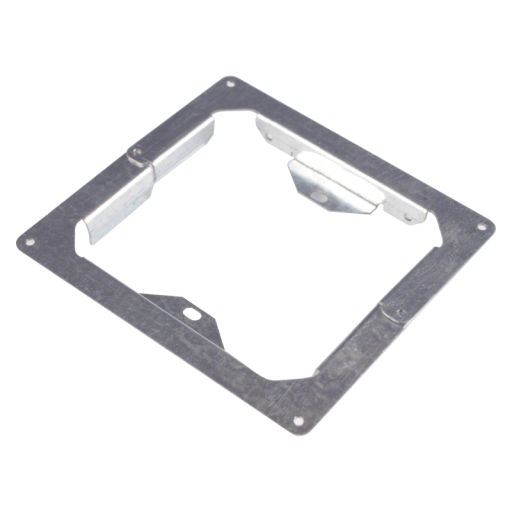

The furniture support for the EH-SUP-11x6 socket from the Electro House company is intended for installation of the floor mortise socket with grounding EH-F007 in furniture. Now, thanks to this device, a stylish and reliable floor outlet can also be used as a furniture outlet.

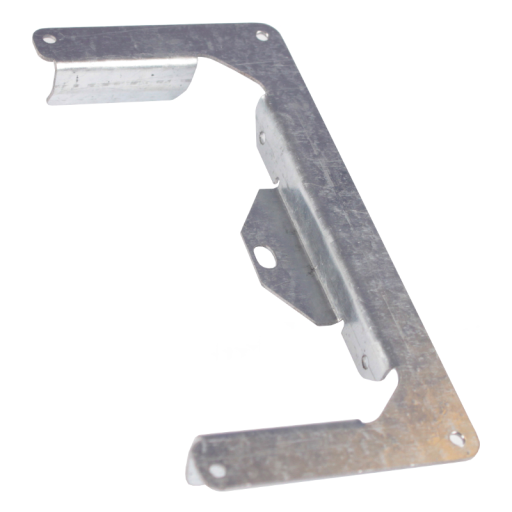

The support is mounted in the prepared hole in the countertop. The size of the hole should be 108x108 mm. The product is fixed using self-tapping screws. The outlet bracket is made of galvanized steel 1 mm thick. Structurally, it is two metal profiles of complex shape with holes for fastening to furniture. The diameter of the mounting holes is 2.9 mm.

Floor-mounted electrical fittings

SKU	Name	Picture
EH-F011	Floor Socket With Grounding Black 16 А + 2 USB (type C+A) 2,1 А IP44
EH-F008	Floor Socket With Grounding Aluminum 16 А + 2 USB 2,1 А IP44
EH-F009	Floor Socket With Grounding White 16 А + 2 USB 2,1 А IP44
EH-F007	Floor Socket With Grounding 16 А + 2 USB out 2,1 А IP44
EH-F010	Floor Socket With Grounding Black 16 А + 2 USB 2,1 А IP44
