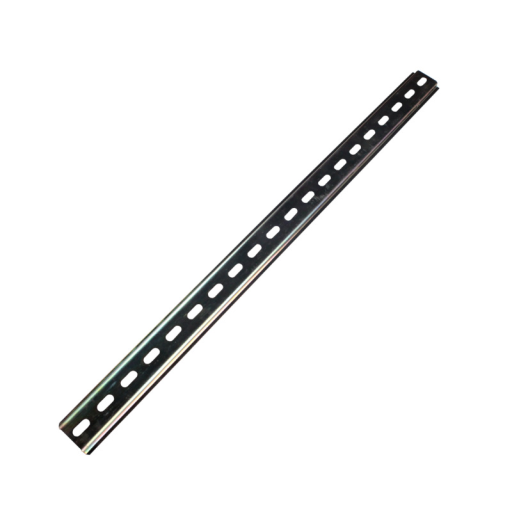

DIN-rail thickness 1 mm, 1 m
Technical Specifications
| SKU | EH-DIN-1X1 |
|---|---|
| Material | Galvanized steel |
| Brand Registration Country | Ukraine |
| Manufacturer | Electro House |
| View | DIN rails, Shield accessories |
| Temperature Range | -60...+60°С |
| Thickness | 1 mm |
| Height | 7,5 mm |
| Width | 35 mm |
| Length | 1 m |
| Weight | 0,316 kg |
Description
DIN-rail thickness 1 mm, 1 m EH-DIN-1X1 from Electro House is a high-quality solution for quick and easy installation of modular electrical equipment in electrical panels, installation boxes and electrical cabinets. It is ideal for installing RCDs, RCDs, mini circuit breakers, terminals, busbars, sockets, electric meters and many other devices. Due to its versatility and ease of use, this DIN rail allows you to significantly reduce installation time, as the equipment simply clips onto the rail without the need for additional tools. This makes the installation process much faster and more convenient compared to traditional mounting methods.
Installation and maintenance of electrical panels using the Electro House DIN rail becomes simple and safe: to disconnect the device, you only need to move the latch, which takes a few seconds. Most modern modular equipment is adapted to the DIN rail, which allows you to avoid searching for specific solutions for various equipment. The rail is made of galvanized carbon steel, which guarantees its durability and reliability. It can be used in a temperature range from -60 to +60°C, making it an ideal choice for various operating conditions. The DIN rail meets European quality standards.
DIN-rail thickness 1 mm, 1 m from ElectroHouse combines simplicity, reliability and comfort in operation, making it an excellent choice for your electrical equipment.
DIN-rails
| SKU | Name | Picture |
|---|---|---|
| EH-DIN-1X06 | DIN-rail Thickness 0,6 mm |
|
| EH-DIN-1X08 | DIN-rail thickness 0,8 mm, 1 m |
|
| EH-DIN-500 | DIN-rail 24 modules, 500 mm |
|
| EH-DIN-300 | DIN-rail 16 modules, 300 mm |
|
| EH-DIN-225 | DIN-rail 12 modules, 225 mm |
|
| EH-DIN-110 | DIN-rail 6 modules, 110 mm |
|
| EH-DIN-75 | DIN-rail 4 modules, 75 mm |
|
| EH-DIN-45 | DIN-rail 2 modules, 45 mm |
|
| EH-DR01 | Clip on DIN-rail metal |
|
