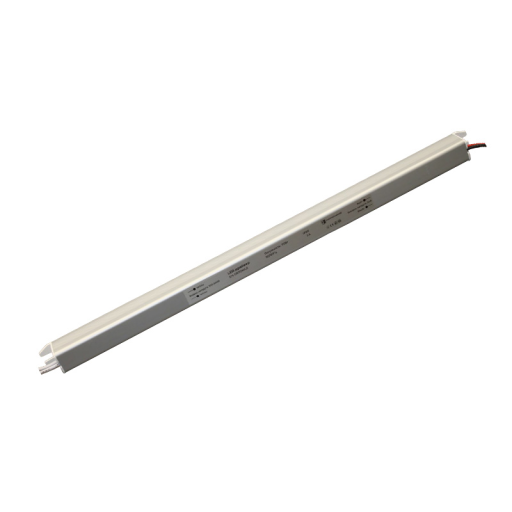

LED driver compact 72 W 24 V (series Thin series), warranty 2 years

EH-DR72WL2
Especificaciones técnicas
SKU EH-DR72WL2
Power 72 W
Guarantee 2 years
Serie Thin series
Component type LED driver
Manufacturer Electro House
Weight 100 g
Height 1,7 cm
Width 1,8 cm
Length 34,5 cm
Current purity 50/60Hz
Protection (IP) IP20
Temperature Range TC:75°C TA:50°C(MAX)
Output voltage 24 V
Input voltage 170-265 V
Output current 3A
Descripci

LED driver compact 72 W 24 V (series Thin series), warranty 2 years of the Electro House trademark provides stable power supply to the LED strip, this is the most important component that ensures its long-term uninterrupted operation. It converts alternating current to direct current with the characteristics required to power the LED strip. Driver power 72 W, output voltage 24 V, output current DC 3A. The housing has all the necessary markings and specifications for installation. The LED strip driver EH-DR72WL2 belongs to the Thin series series and has a degree of protection IP20 . This product is covered by the warranty 2 years. It can also be used to power various low-voltage equipment and LED lighting devices. The thin LED strip driver can be used in limited space conditions, it can be placed in almost any convenient place. This is necessary so that the product is not visible and does not spoil the interior. It is advisable to place the LED driver as close to the LED strip as possible to avoid losses due to the length of the cable. It is then that the question arises how to secretly place the driver so that it is as close as possible to the LED strip. The LED driver EH-DR72WL2, made in super slim driver format, is best suited for such an installation. It is most often used for the organization of interior illumination of objects, for example, for the illumination of mirrors and furniture. The Slim driver is designed for use in rooms with normal humidity levels, for use in other conditions, you can choose a driver of our brand from another series.
