Placa abrazadera 2х16-25mm
Especificaciones técnicas
| SKU | EH-2.1 |
|---|---|
| Section | 2х16-25mm |
| Pull force | 40 Hm |
| Amount in a package | 50 pcs |
Descripci

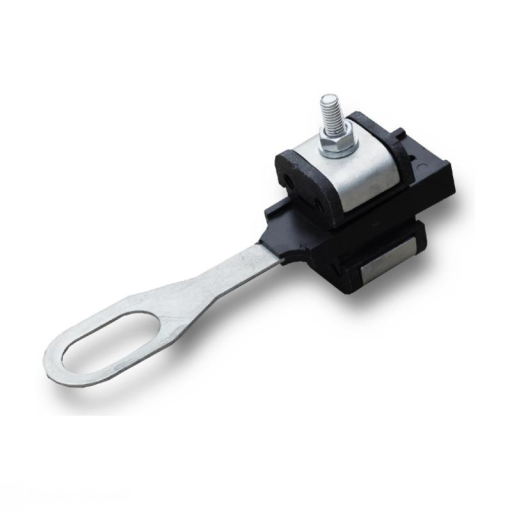

Placa abrazadera 2х16-25mm EH-2.1 unites in itself all types of the fixing segments necessary for fixing of electric cables. It serves to fasten conductive cords from two cores, which are insulated, and the cross section is 1.6-2.5 mm² of detached power line to the walls of buildings and bearing supports using standardized hooks. Their installation is used with quite no difficulties. The design of the product itself consists of a metal plate with zinc coating, fastening and several inserts of polymer, which are combined with a screw. All elements of which the product is made are securely connected. The highest operating temperature of the anchor tension clamp is 2x16-25: + 50C °, the minimum is -30C ° height above sea level - up to 2000m.
Clamps
| SKU | Nombre | Imagen |
|---|---|---|
| EH-P.1 | Pinza perforadora 16-95 / 1,5-10 mm² |
|
| EH-P.2 | Pinza perforadora 16-70 / 6-35 mm² |
|
| EH-P.3 | Pinza perforadora 35-70 / 6-35 mm² |
|
| EH-P.4 | Pinza perforadora 16-120/16-120 mm |
|
| EH-3.3 | Abrazadera de anclaje 4х50-95 mm² |
|
| EH-5.2 | Abrazadera de anclaje 4х70-120 mm² |
|
| EH-3.4 | Tension clamp 2х25-50 mm² |
|
| EH-3.5 | Tension clamp 4х25-50 mm² |
|
| EH-5.1 | Suspended clamp 4х16-120 mm² |
|
| EH-1.1A | Abrazadera de alambre 2х16-25 mm² |
|
| EH-1.2A | Abrazadera de alambre 4х16-25 mm² |
|
| EH-2.2 | Placa abrazadera 4х16-25mm |
|
| EH-4.2 | Abrazadera de anclaje 4х25-70 mm² |
|
| EH-8.1 | Abrazadera de pistón PA 1.1 |
|
