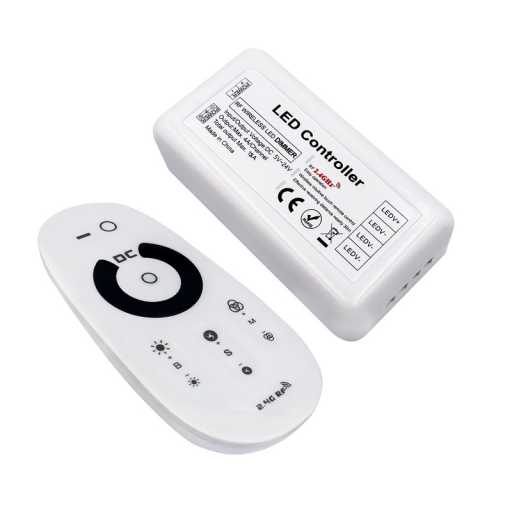

Dimmer 18A with RF radio control

EH-DIM-18A
Especificaciones técnicas
SKU EH-DIM-18A
Color Blanco
Operating voltage of the remote control 3V
Remote control power supply AAA batteries *2 pcs
Operating frequency of the remote control 2.4-2.48 GHz
Controlled distance 30 m
Voltage 12-24V DC
Output current 3CH/18A
Potencia de salida 12V/216W, 24V/432W
Temperature Range -20 ... +55°С
Guarantee 2 years
Descripci

Dimmer 18A with RF radio control EH-DIM-18A from Electro House is an innovative LED strip control solution that provides comfort and ease of use. The device has a white body with black elements, which organically fits into any interior, giving an aesthetic appearance.

One of the main advantages of the dimmer is the possibility of remote control using radio frequency (RF) communication, which allows you to control the lighting at a distance of up to 30 meters in an open space. Even through obstacles, the signal will be stable, which ensures ease of use.

The remote control is equipped with touch keys and runs on 2*AAA batteries with an operating voltage of 3V DC. The dimmer supports the operating frequency 2.4-2.48 GHz, which ensures reliable signal transmission. It is able to function in a temperature range of -20 to 55 °C, which makes it ideal for use in various temperature conditions..

As for the technical characteristics, the dimmer works with a voltage of 12-24V DC and has an output current of up to 12A per three channels. Output power is up to 144 W at 12V and up to 288 W at 24V, which makes it a powerful and versatile solution for various LED projects. The dimmer allows you to easily adjust the brightness of the light, creating a comfortable atmosphere in any room.

Choosing Dimmer 18A with RF radio control from ElectroHouse, you get high quality, convenience and reliability in lighting control. This is an excellent solution for those who appreciate modern technology and comfort in everyday life.
